Overview
The Deep-Water Network, developed by Puertos del Estado, is a comprehensive system for monitoring the marine environment in Spanish waters. Designed to enhance maritime safety, support scientific research and improve port operations, the network consists of 12 buoys measuring various oceanographic and meteorological parameters, providing real-time data for diverse applications.
Network Overview
The Deep-Water Network integrates two existing systems: the EMOD network and the RAYO project. The EMOD network, operational since the 1990s, includes three stations equipped with Wavescan buoys for wave monitoring. The RAYO project, launched in 1997, consists of nine SEAWATCH® buoys provided by Fugro’s Oceanor, focusing on comprehensive oceanographic and meteorological data collection.
Overview
The Deep-Water Network, developed by Puertos del Estado, is a comprehensive system for monitoring the marine environment in Spanish waters. Designed to enhance maritime safety, support scientific research and improve port operations, the network consists of 12 buoys measuring various oceanographic and meteorological parameters, providing real-time data for diverse applications.
Network Overview
The Deep-Water Network integrates two existing systems: the EMOD network and the RAYO project. The EMOD network, operational since the 1990s, includes three stations equipped with Wavescan buoys for wave monitoring. The RAYO project, launched in 1997, consists of nine SEAWATCH® buoys provided by Fugro’s Oceanor, focusing on comprehensive oceanographic and meteorological data collection.
The Challenge
Spain's coastal waters are influenced by dynamic currents and frequent upwelling phenomena, disrupting port operations and impacting the marine ecosystem. Severe weather events, like Storm Gloria in 2020, pose significant risks to port infrastructure and maritime safety. Existing forecasting models lacked real-time verification, leading to costly errors in planning and response. Safety concerns and economic impacts highlighted the need for a reliable and comprehensive monitoring system.
The Challenge
Spain's coastal waters are influenced by dynamic currents and frequent upwelling phenomena, disrupting port operations and impacting the marine ecosystem. Severe weather events, like Storm Gloria in 2020, pose significant risks to port infrastructure and maritime safety. Existing forecasting models lacked real-time verification, leading to costly errors in planning and response. Safety concerns and economic impacts highlighted the need for a reliable and comprehensive monitoring system.

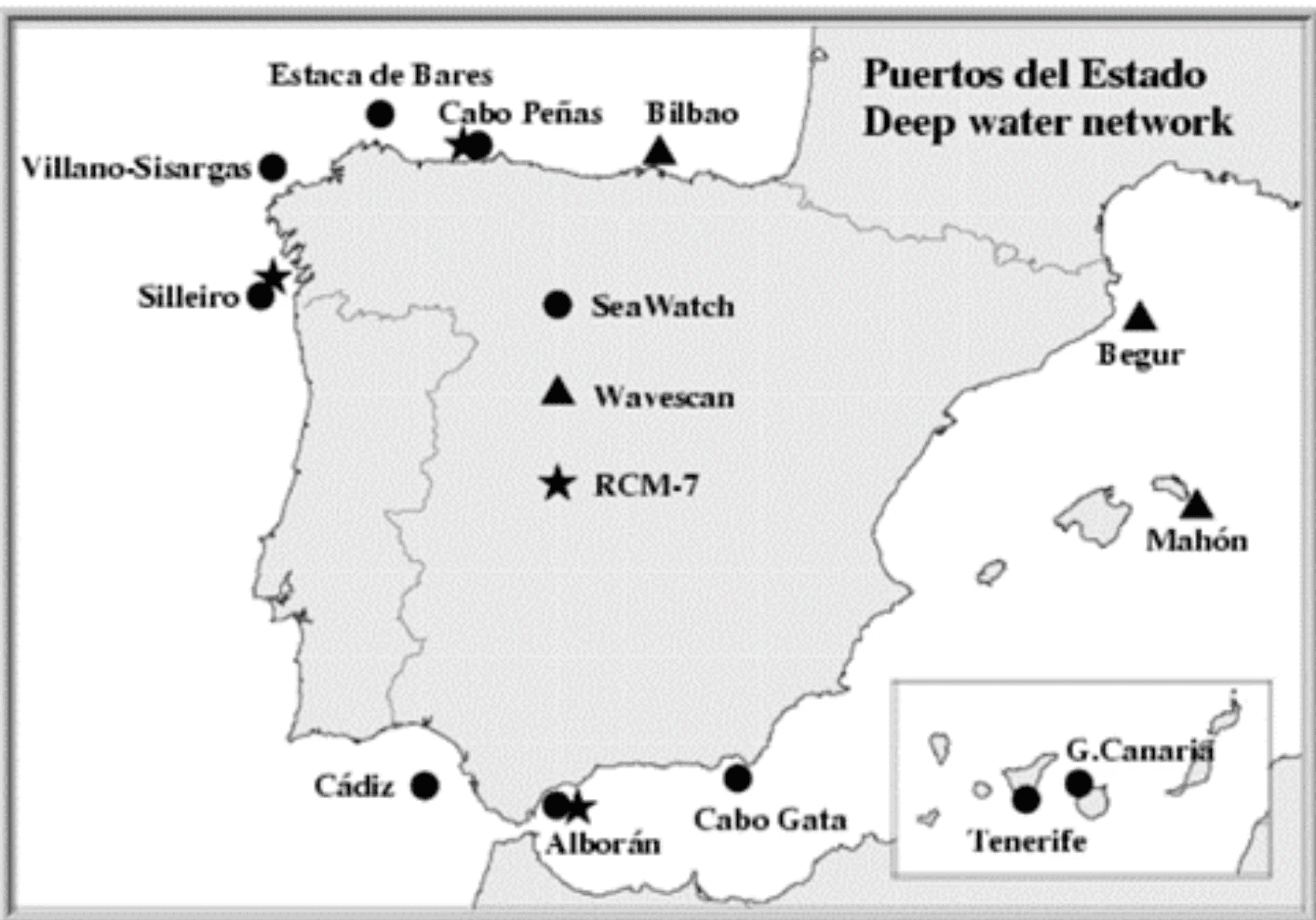

A map displaying the Deep-Water Network in Spanish Coastal Waters, indicating the locations of monitoring buoys
A map displaying the Deep-Water Network in Spanish Coastal Waters, indicating the locations of monitoring buoys

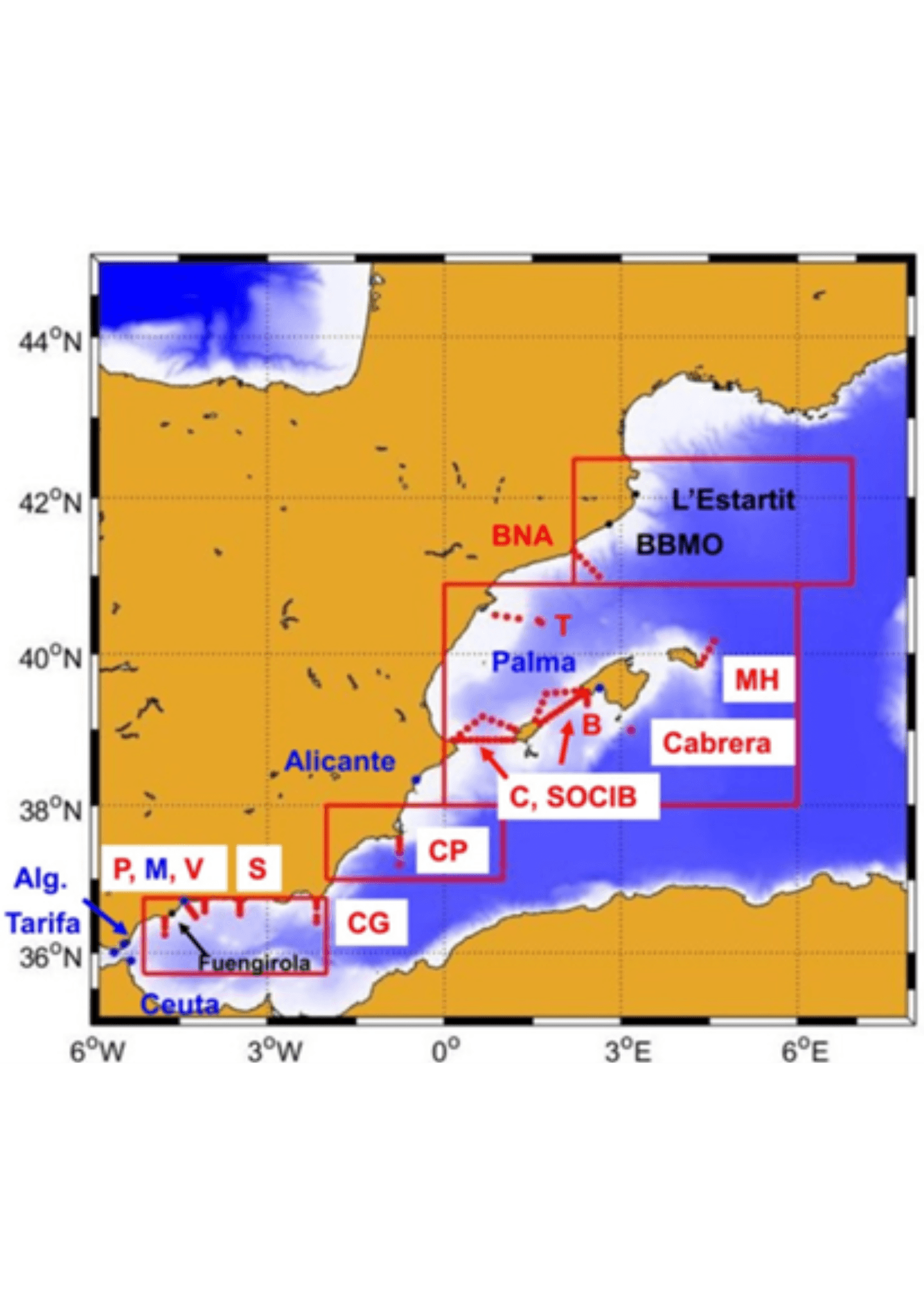

A map of the oceanographic monitoring and research stations along the Spanish Coast
A map of the oceanographic monitoring and research stations along the Spanish Coast
Purpose and Applications Before Integration
Before integration into the Deep-Water Network:
EMOD Network: Focused on wave monitoring to ensure safe and efficient port operations, supporting the design and maintenance of coastal structures and informing navigation practices.
RAYO Project: Aimed at advancing scientific research by collecting data on oceanographic parameters, vital for understanding marine ecosystems and supporting environmental protection initiatives.
Purpose and Applications Before Integration
Before integration into the Deep-Water Network:
EMOD Network: Focused on wave monitoring to ensure safe and efficient port operations, supporting the design and maintenance of coastal structures and informing navigation practices.
RAYO Project: Aimed at advancing scientific research by collecting data on oceanographic parameters, vital for understanding marine ecosystems and supporting environmental protection initiatives.
Deployment and Expansion
The creation of the Deep-Water Network involved strategic planning and collaboration:
Strategic Deployment: 12 buoys were strategically placed in deep waters (depths greater than 300 meters) for accurate data collection.
Technological Integration: Advanced sensors measured waves, currents, wind, atmospheric pressure, temperature, sea surface temperature and salinity.
Data Management: Real-time data transmission via satellite to Puertos del Estado in Madrid allowed for immediate analysis and dissemination.
Deployment and Expansion
The creation of the Deep-Water Network involved strategic planning and collaboration:
Strategic Deployment: 12 buoys were strategically placed in deep waters (depths greater than 300 meters) for accurate data collection.
Technological Integration: Advanced sensors measured waves, currents, wind, atmospheric pressure, temperature, sea surface temperature and salinity.
Data Management: Real-time data transmission via satellite to Puertos del Estado in Madrid allowed for immediate analysis and dissemination.
Data Collection and Real-Time Transmission
The buoys measured data every hour, transmitted in real-time via an Inmarsat satellite to Puertos del Estado in Madrid. The data underwent automatic quality control and was made available online for public access. Directional wave information was propagated in real-time to harbor entrances using a wave propagation model.
Data Collection and Real-Time Transmission
The buoys measured data every hour, transmitted in real-time via an Inmarsat satellite to Puertos del Estado in Madrid. The data underwent automatic quality control and was made available online for public access. Directional wave information was propagated in real-time to harbor entrances using a wave propagation model.

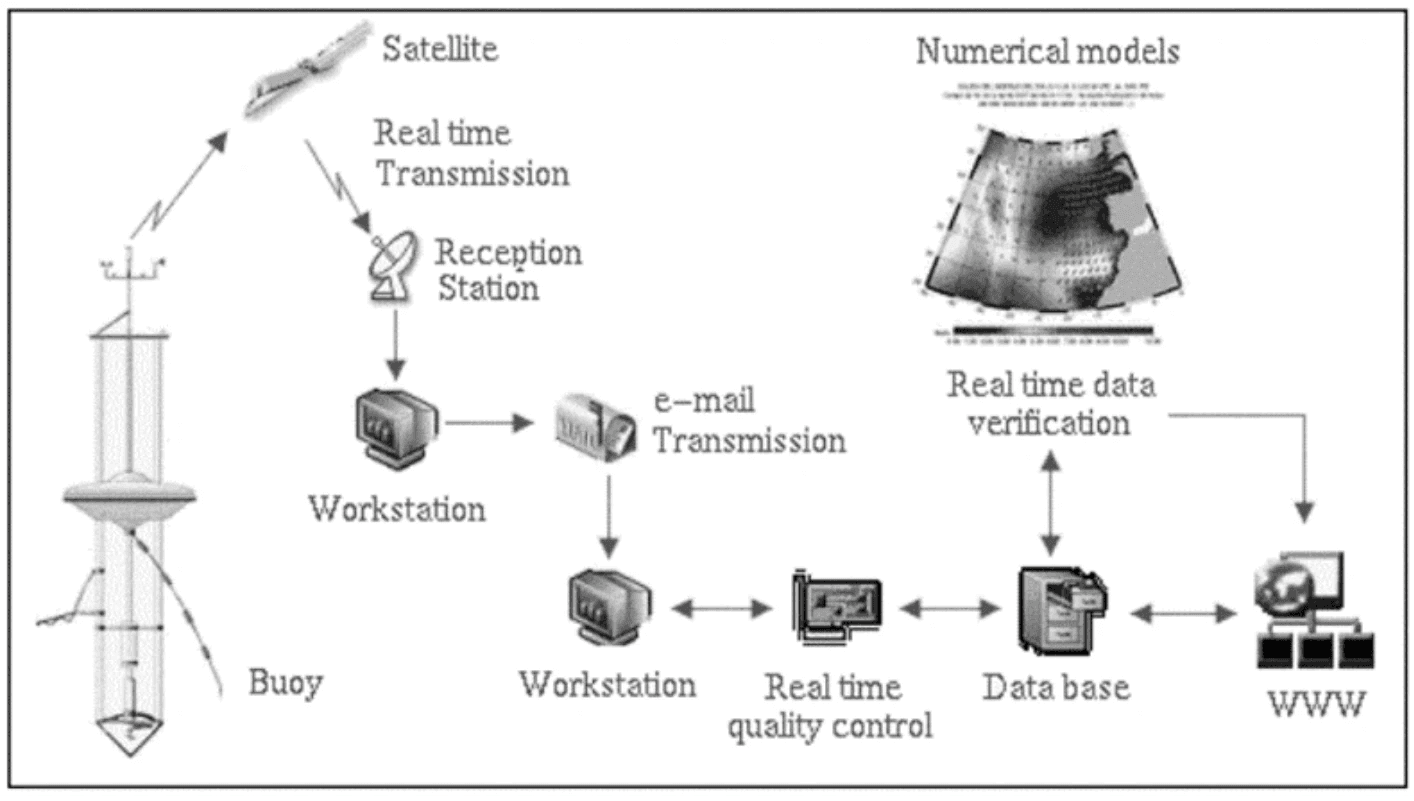

A diagram showing the data flow of the ocean monitoring system using real-time buoy transmissions, numerical modeling and online accessibility
A diagram showing the data flow of the ocean monitoring system using real-time buoy transmissions, numerical modeling and online accessibility
The Impact
The implementation of the Deep-Water Network has profoundly impacted maritime safety and scientific research. Real-time data supports port authorities and maritime rescue organizations, improving navigation safety and reducing accident risks. During severe weather events like Storm Gloria, the network's data enabled better preparedness and response, minimizing damage and enhancing safety.
Moreover, the data collected improved the accuracy of weather and wave forecasting models, allowing for better planning and decision-making, reducing economic losses and enhancing maritime operations' efficiency. The network also supported scientific research, facilitating studies on oceanographic processes, climate change and marine ecosystems. This long-term dataset positions Spain as a leader in marine research and enabled over 20 international research partnerships.
The Impact
The implementation of the Deep-Water Network has profoundly impacted maritime safety and scientific research. Real-time data supports port authorities and maritime rescue organizations, improving navigation safety and reducing accident risks. During severe weather events like Storm Gloria, the network's data enabled better preparedness and response, minimizing damage and enhancing safety.
Moreover, the data collected improved the accuracy of weather and wave forecasting models, allowing for better planning and decision-making, reducing economic losses and enhancing maritime operations' efficiency. The network also supported scientific research, facilitating studies on oceanographic processes, climate change and marine ecosystems. This long-term dataset positions Spain as a leader in marine research and enabled over 20 international research partnerships.
Conclusion
The Deep-Water Network represents a significant advancement in monitoring Spanish coastal waters. By providing real-time, high-quality data, the network supports maritime safety, scientific research and efficient port operations. It offers valuable insights into oceanographic processes, including the Navidad Current, upwelling phenomena and the Atlantic inflow into the Mediterranean, critical for understanding the region's marine environment.
Conclusion
The Deep-Water Network represents a significant advancement in monitoring Spanish coastal waters. By providing real-time, high-quality data, the network supports maritime safety, scientific research and efficient port operations. It offers valuable insights into oceanographic processes, including the Navidad Current, upwelling phenomena and the Atlantic inflow into the Mediterranean, critical for understanding the region's marine environment.
